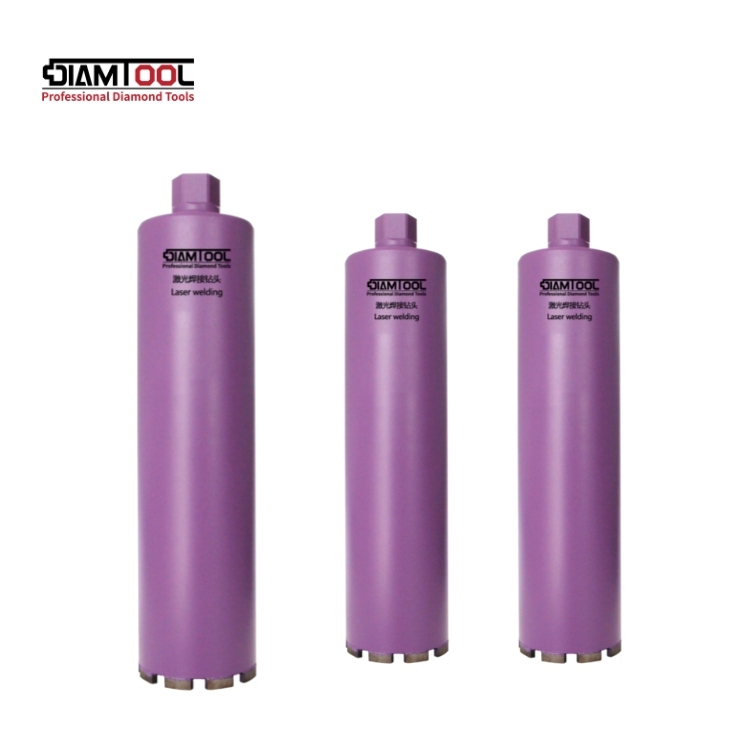

Laser Diamond Core Drill Bit

＊Out Diameter:Φ30mm~Φ300mm
＊Segment Height:10mm
＊Working Length:245-400mm
＊Total Length:300-450mm
＊Direct Factory,Customization Accepted.

＊Raw Material:Precision Steel Tube & Diamond Segment
＊Screw:1-1/4-7,1-1/4-3,M22and others
＊Shank Type:Hexgon
＊Application:Reinforced Concrete,brick,Asphalt with water.
＊Suitable for:Portable & fixed driller

＊Welding Process:Laser
＊Neat Segment Height，High Strength Segment,Sharp and Stable.

Laser welding diamond segment the biggest advantage is that the drill is not easy to drop teeth, safe and reliable.

It has been tested and mass-produced, with high efficiency and good quality. For customers with difficult drilling environment and requirements for drill quality, they can be assured to purchase such high-quality laser welded drills.

Tailored Precision for Professional Core Drilling

The Laser Diamond Core Drill Bit is engineered specifically for concrete core drilling companies and industrial professionals who require exact hole dimensions and minimal vibration. As a high-grade metal hole cutter compatible with most hole drilling machines, it serves engineers and procurement managers seeking dependable tools for large-scale and custom drilling projects. This hole cutter combines precision engineering with robust material selection to meet the rigorous standards of structural testing, retrofit installations, and construction quality control applications. The bit’s versatility supports a broad range of reinforced concrete substrates and dense stone, making it an essential component in drilling system setups demanding consistent and repeatable output.

Advanced Technical Specifications for Durable Performance

Designed with a laser-welded diamond segment, this hole saw cutter achieves optimal cutting efficiency with an outer diameter range from 30mm to 300mm. Its metallic welding process guarantees segment stability and longevity under high torque conditions typical in heavy-duty hole drilling machines. The diamond core bit’s segment height and working lengths are customizable between 10mm and 400mm respectively, allowing adjustments based on drilling depth and material hardness. Hexagonal shanks and multiple screw types (1-1/4-7, M22) facilitate seamless integration into existing drilling assemblies. This precision hole cutter additionally benefits from eco-conscious manufacturing processes, reducing energy waste without compromising technical performance or replacing frequency, supporting cost-effective long-term usage.

Application Across Construction and Industrial Projects

The Laser Diamond Core Drill Bit is widely adopted in structural core sampling, demolition, and retrofit tasks where clean, controlled holes in reinforced concrete or brick are mandatory. Construction professionals rely on this hole saw cutter to deliver precise core extraction for quality assurance during project progression audits or certification labs. Its ability to produce tailored diameter cores accommodates bespoke installation requirements, including MEP conduit passages and anchor bolt positioning. The tool's performance in harsh, abrasive materials aligns with regulatory compliance for safety and durability, providing engineers with a reliable solution that integrates well into multi-step workflows involving hole drilling machines and inspection instrumentation.

Product Advantages

Robust Structural Design and Integration

This metal hole cutter features a laser-welded diamond segment configuration that ensures exceptional adherence between diamond and base metal, minimizing segment detachment risks and extending tool life. The design allows straightforward replacement and compatibility with various hole drilling machine models through standardized shank options and threading. The segmented rim reduces heat generation and material stress during operation, increasing operational windows under continuous heavy use. Such modular design enhances adaptability across different drilling platforms and simplifies inventory management by enabling modular, easily interchangeable components within professional drilling teams.

Enhanced Operational Efficiency and User Value

Incorporation of premium diamond materials combined with precision laser welding enables this hole cutter to provide smooth, vibration-controlled drilling, minimizing operator fatigue and improving drilling accuracy. The ecologically sound production approach reduces manufacturing waste, improving overall sustainability credentials while maintaining high-performance metrics. Ease of installation with hex shanks and universal screw threads reduces downtime when changing bits on hole drilling machines, enhancing workflow fluidity on demanding job sites. These factors cumulatively reduce life-cycle costs and improve return on investment for companies requiring reliable, high-throughput drilling solutions in concrete and stone materials.

Use Scenarios

Structural Core Sampling in Construction Quality Control

In the construction sector, accurate structural core sampling is critical for validating concrete uniformity and compliance with design specifications. The Laser Diamond Core Drill Bit serves as a precise metal hole cutter to extract defect-free cores from recently poured reinforced concrete. The hole saw cutter’s ability to maintain dimensional accuracy under repeated use ensures consistent sample quality, facilitating reliable laboratory testing and certification. Integration with standard hole drilling machines allows seamless field operation, supporting quality assurance workflows and enabling fast project approvals via robust analytical data derived from extracted cores.

Demolition and Retrofit Projects Requiring Precise Openings

During retrofit and demolition operations where controlled openings in reinforced concrete or brick are necessary, this hole cutter plays a pivotal role. The tool’s robust diamond segments enable clean, minimal-breakout cuts, reducing collateral damage and preserving structural integrity adjacent to cut zones. Compatibility with various hole drilling machines permits precise size adjustments essential for retrofit installations such as piping or electrical conduit passages. Its reliable performance under abrasive conditions ensures compliance with engineering standards while simplifying workflow integration, allowing project teams to maintain productivity and safety on complex renovation sites.
