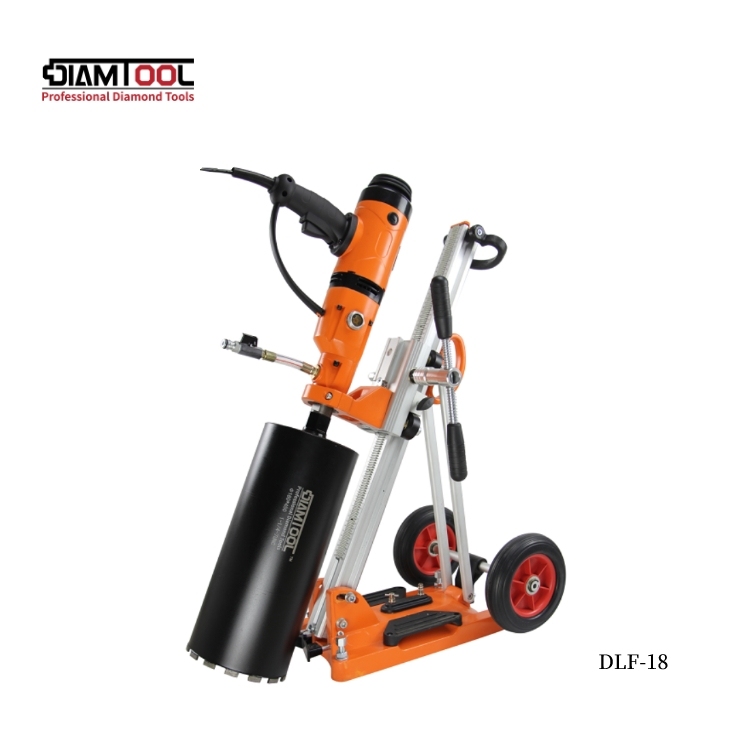

DLF-18 Professional Engineering Drilling Machine

Description Review

Description

●Max.Drilling Diameter:132mm
●Rated Voltage:110/220/240V
●Rated Frequency:50-60Hz
●Input Power:1800W
●Rated Currents:9A
●3-speed Gearbox:580/1400/2800rpm
●Spindle:1-1/4"
●Alu Column:50*60*900mm
●Travel Length:550mm
●Motor Weight:8.2kg
●Rig Weight:13kg
●Packing:1 sets/case
●Packing Size:1070*340*440mm
●Portable & Fixed Dual-use

Tips:
●The max diameter drill on concrete is 8'', so we suggest that the diameter of material to drill is less than 8'' at least.

Our company was founded in Tongling,Anhui,China on 2003

Name: DLF-18 Professional Engineering Drilling Machine
Brand: TONGLING CHANGJIANG DIAMOND TOOLS
SKU: 039
Availability: InStock
Rating: 5 (1 reviews)

●DLF series is professional concrete drill machine, Gears precision-made, heat treatment, improve gear hardness and wear resistance.
●Column in full magnesium alloy die-cast aluminium. Ensures aluminium parts high precision, light weight, high strength, oxygen and rust resistant
●Quick release bracket, could angular drill from 0 to 90 degrees.
Castors for fast movement.

●Three speed-regulating gears extends the drilling range.
Effectively protects the motor and improves efficiency.
●Liquid gear oil bath to adequately lubricate and cool the gears in the gearbox.
●Can be equipped with a vacuum suction cup base, no need fixing bracket, efficient and quick.

Professional Engineering Drilling Machine Packaging
